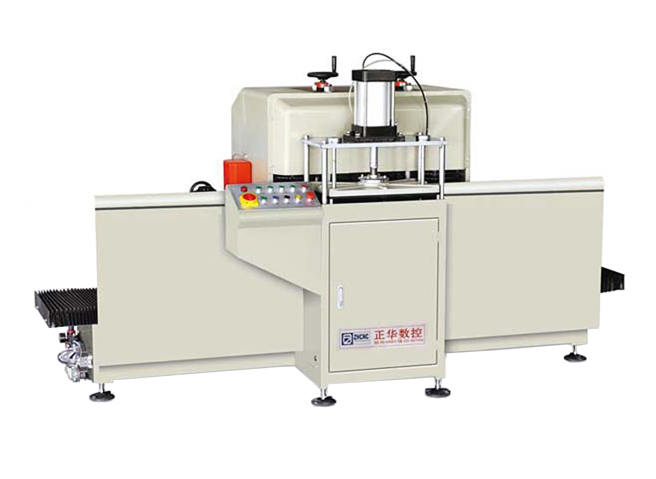

LXDQZ-250 Aluminum Profile Tenon Milling Machine

Clicks:

Aluminum Profile Tenon Milling Machine
Product Details
Features
●The utility model is used for the Strengthening of the end face of the aluminum profile fixing and the cutter movement, and adopts a vector frequency conversion speed regulating device, the feeding speed is adjustable, and the cutter is rapidly retract.
●The tool can be adjusted up and down, left and right, and can be used to process the profiles with different sections to shorten the production cycle and reduce the finished products.
●The cutter diameter is big, the milling speed is high, the processing surface quality is high.

Technical Parameters
Power supply:380V/50Hz
Input power:4×2.2Kw
Air pressure:0.6~0.8Mpa
Motor rotary speed:2800r/min
Cutter specification:Φ200×Φ32mm
Cutter adjustment: 85mm
Worktable feed stroke:1600mm
Max tenon:40mm
Overall dimension:3080×1160×1600mm
